XC3S700AN

Product Summary

The XC3S700AN is a 1.2V Field-Programmable Gate Array. It solves the design challenges in many high-volume, cost-sensitive electronic applications. With 12 devices ranging from 50,000 to 3.4 million system gates, the Extended XC3S700AN provides a broad range of densities and package options, integrated DSP MACs, and low total system cost while increasing functionality. The XC3S700AN also includes the nonvolatile Spartan-3AN devices, which combine leading-edge FPGA and flash technologies to provide a new evolution in security, protection and functionality, ideal for space-critical or secure applications.

Parametrics

XC3S700AN absolute maximum ratings: (1)Internal supply voltage:-0.5V to 1.32V; (2)Auxiliary supply voltage:-0.5V to 3.75V; (3)Output driver supply voltage:-0.5V to 3.75V; (4)Input reference voltage:-0.5V to VCCO+0.5V; (5)Voltage applied to all User I/O pins and dual-purpose pins:-0.95V to 4.6V; (6)Voltage applied to all Dedicated pins:-0.5V to 4.6V; (7)Input clamp current per I/O pin:±100mA; (8)Junction temperature:125℃; (9)Storage temperature:-65℃ to 150℃.

Features

XC3S700AN features: (1)Very low-cost, high-performance logic solution for high-volume, cost-conscious applications; (2)Low-cost QFP and BGA packaging, Pb-free options; (3)Flexible power management; (4)Leading connectivity platform; (5)Abundant, flexible logic resources; (6)Dedicated resources for high-speed digital signal processing applications; (7)Precise clock management with up to eight Digital Clock Managers(DCMs); (8)Integrated flash memory in Spartan-3AN devices; (9)Eight low-skew global clock networks, eight additional clocks per half device, plus abundant low-skew routing; (10)Hierarchical SelectRAM memory architecture; (11)Configuration interface to industry-standard PROMs; (12)Complete Xilinx ISE and free WebPACK development system software support; (13)MicroBlaze and PicoBlaze embedded processors reduce risk; (14)Low-cost starter kits from Xilinx, distributors, and third parties; (15)XA versions available for Automotive applications.

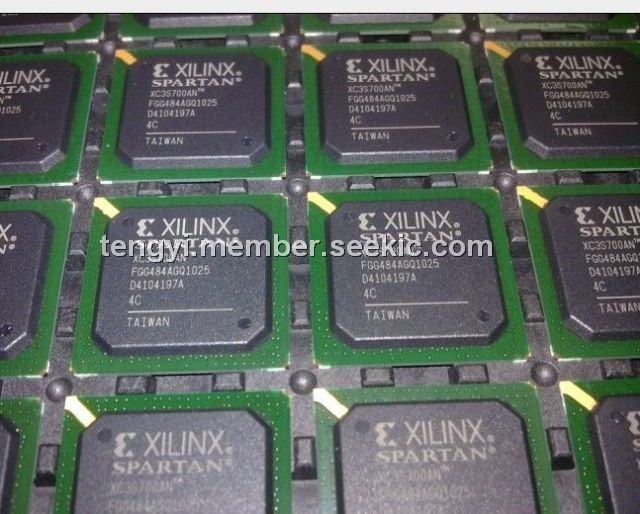

Diagrams
