Product Summary

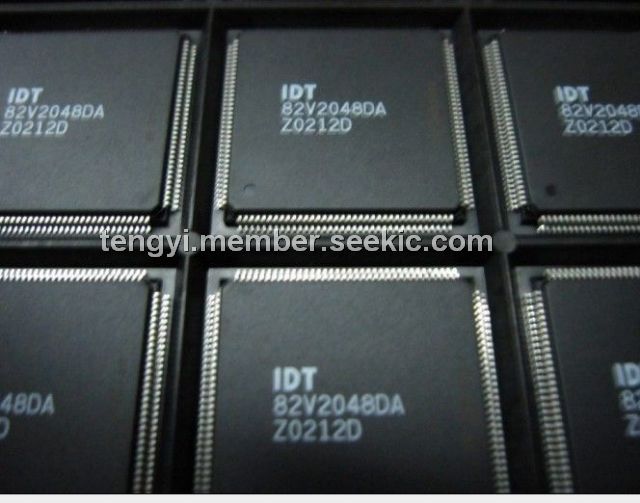

The IDT82V204BDA is a single chip, 8-channel T1/E1 short haul PCM transceiver with a reference clock of 1.544MHz (T1) or 2.048MHz (E1). It contains 8 transmitters and 8 receivers. The IDT82V204BDA also provides loopback and JTAG boundary scan testing functions. Using the integrated monitoring function, the IDT82V204BDA can be configured as a 7-channel transceiver with non-intrusive protected monitoring points.

Parametrics

IDT82V204BDA absolute maximum ratings: (1)Core Power Supply:-0.5 to 4.0 V; (2)I/O Power Supply:-0.5 to 4.0 V; (3)Transmit Power Supply:-0.5 to 7.0 V; (4)Input Voltage, Any Digital Pin:GND-0.5 to 5.5 V; (5)ESD Voltage, any pin:2000 V; (6)Transient latch-up current, any pin:100 mA; (7)Input current, any digital pin:-10 to 10 mA; (8)DC Input current, any analog pin:±100 mA; (9)Maximum power dissipation in package:1.6 W; (10)Case Temperature:120℃; (11)Storage Temperature:-65 to +150℃.

Features

IDT82V204BDA features: (1)ITU G.772 non-intrusive monitoring for in-service testing for any one of channel1 to channel7; (2)Low impedance transmit drivers with tri-state; (3)Selectable hardware and parallel/serial host interface; (4)Local, remote and inband loopback test functions; (5)Hitless Protection Switching (HPS) for 1 to 1 protection without relays; (6)JTAG boundary scan for board test; (7)3.3V supply with 5V tolerant I/O; (8)Low power consumption; (9)Operating Temperature Range: -40 to +85℃; (10)Available in 144-pin Thin Quad Flat Pack (TQFP_144_DA) and 160-pin Plastic Ball Grid Array (PBGA) packages.

Diagrams

IDT82V204BDA block diagram
